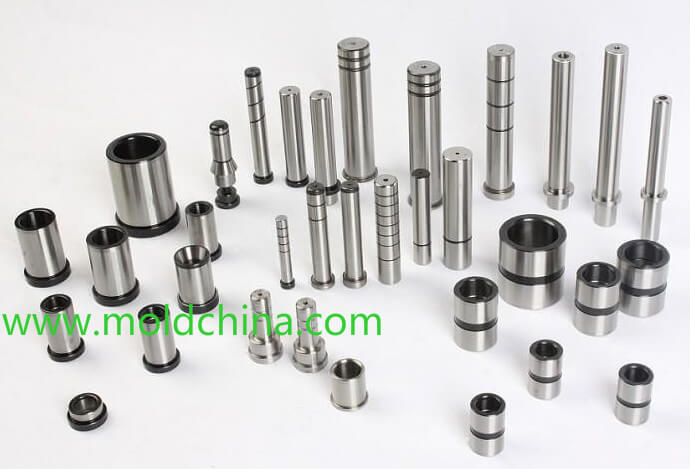

Guide pins for plastic injection mold

  • Guide pin function:

1.Guide pin is for Accurately locate core and cavity side of plastic injection mold,make them match perfectly and move smoothly

2.Support the mold weight

3.Protect core or cavity inserts

  • Material of guide pin:

SUJ2  ,hardness:HRC 60+/-2 degree.(high-frequency quenching)

  • The types and application of guide pin

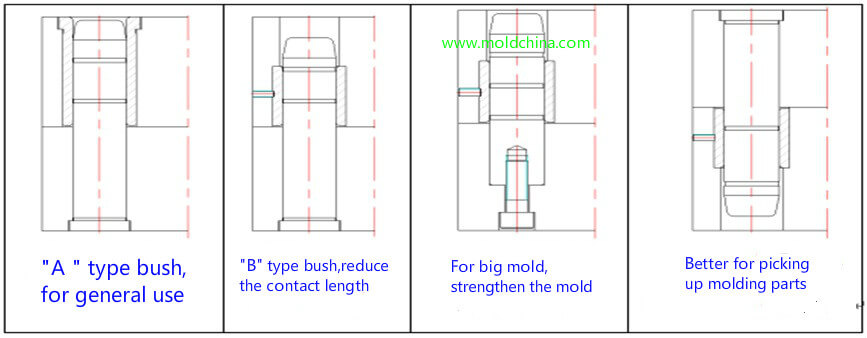

Guide pins type

  • How to design the length of guide pin?

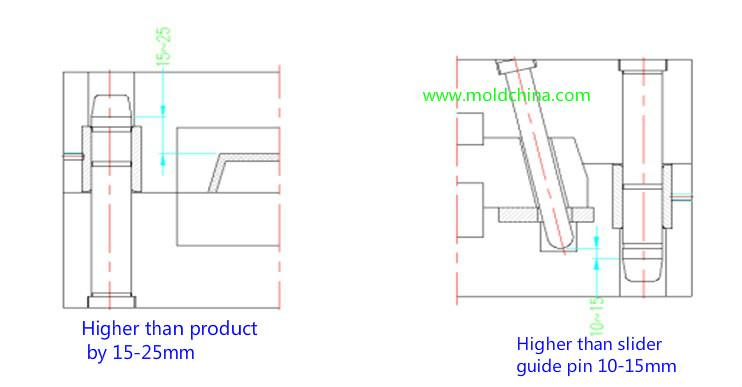

guide pins length design
