o ring for plastic injection mold

O-ring is a typical extruded seal, of which the main sealing design elements are the compression ratio and elongation of its cross section diameter, since they are of great significance to sealing performance as well as service life. The outstanding sealing effect of O ring largely depends on the accurate matching between the dimensions and groove, thus resulting in proper compression and elongation.

When identifying the compression ratio of the O-ring, there are 3 considerations:
1.Ensure sufficient sealing contact area;
2.Minimize friction in mold cooling channels;
3.Try to avoid permanent deformation.

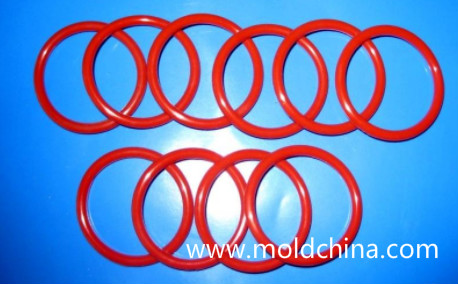

Plastic injection mold company often use red o-rings which can stand high temperature!

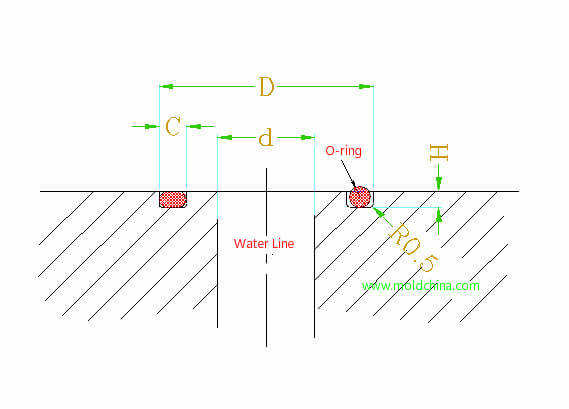

O-ring slot design for plastic injection mold

Please see O ring spec. for plastic injection mold  as blow:

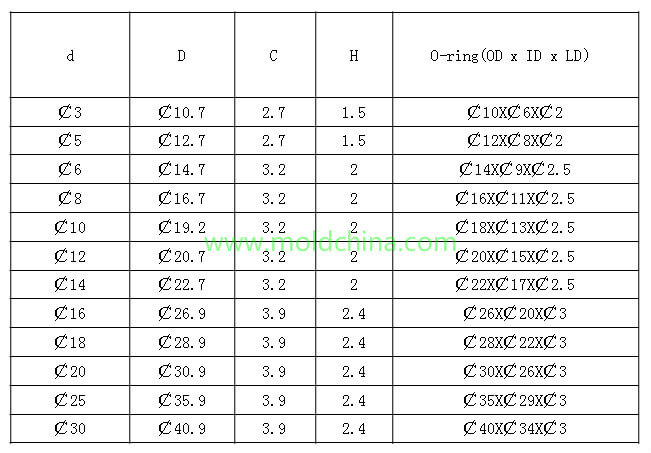

O ring spec. for plastic injection mold
