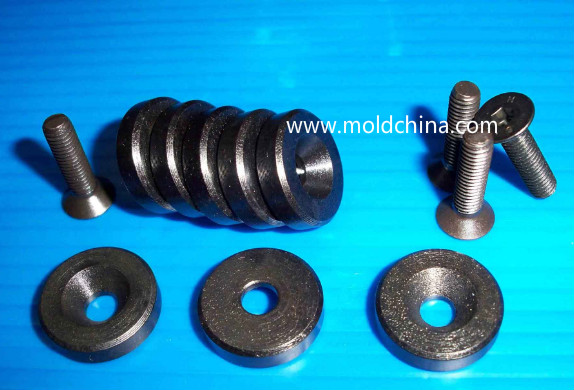

stop pins for plastic injection mold

The function of the stop pin

1.Reduce the contact surface betwwen ejector plates and clamping plates,it is easy to control the flatness of ejector plates by adjusting the thickness of stop pins.

2.Buffer against ejector plates

The material of stop pin

S45C,hardness HRC40°~45°

Position of stop pin

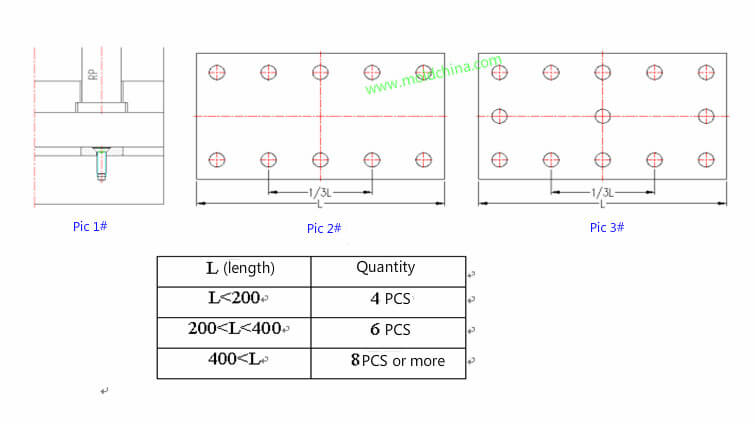

1.An STP must be installed under the RP to prevent deformation caused by large stress,see pic 1#

2. Avoid to interfere with other mold components,such as support,EGP,KO .etc. see pic 2#

The quantity of stop pins

The quantity of stop pin designing

Note:For a large size plastic injection mold, Stop pin is needed to increase the supporting points of the ejector backing plate, so as to prevent ejector plates from deformation
