In plastic injection molding, The sprue bushing is a metal part that links the mold with the injection machine.

the sprue bushing for plastic injection mold

The sprue can also be described as a part of the runner, which allows the molten plastic material to be injected into the mold through the nozzle of an injection machine.Bolt-type sprue bush is a sprue that is fixed with two bolts, which helps prevent the sprue from disconnection caused by high injection pressure.

Sprue Types: Type A/B/C/D/E, etc. and the three commonly used ones are type A/B/C.

sprue bushing types

A sprue made of hot working die steel SKD61 features the properties of heat/wear resistance.

To prevent leakage of plastic materials, the feed throat is usually designed into a chamfer R. The SR (spherical radius) of the mold sprue should be 1 – 2mm larger than the sr of the injection nozzle. Please refer to injection machine specs for the sr of the injection nozzle.

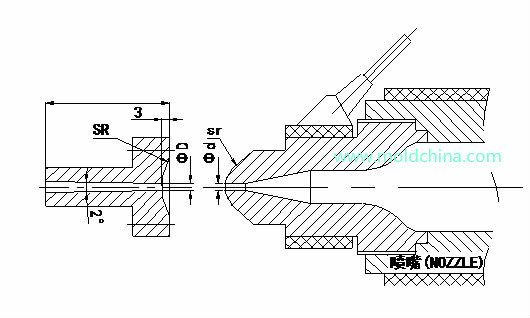

the sprue bushing and injection nozzle

The sprue hole diameter (D) should be 0.5mm larger than the diameter (d) of the injection machine nozzle.
Three measures to shorten the main sprue:
1.       The sprue of a 2-plate mold has to be submerged in the A plate (unless otherwise required by the client);
2.       The main sprue of a 3-plate mold has to be longer than 25 (including 25). Large sprues must be used.
3.       Employ a hot sprue(hot runner) to manufacture products that have high requirements on appearance or other special requirements.

Suggested the hole diameter of sprue:

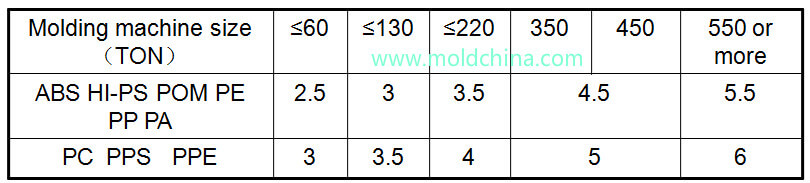

sprue diameter for different material

Currently, the precision and durability of the sprues produced by Chinese plastic mold parts suppliers are on a par with international advanced level.
